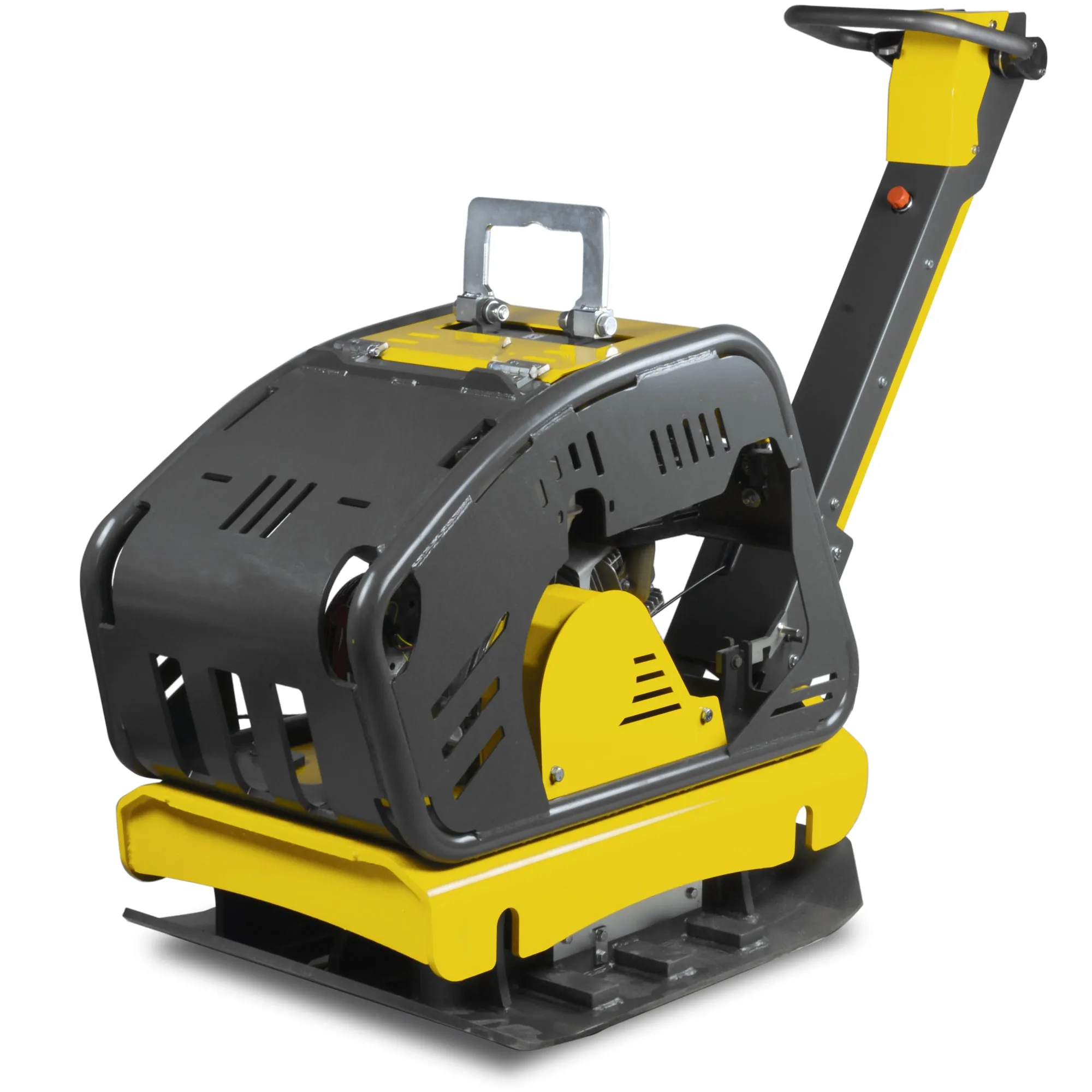

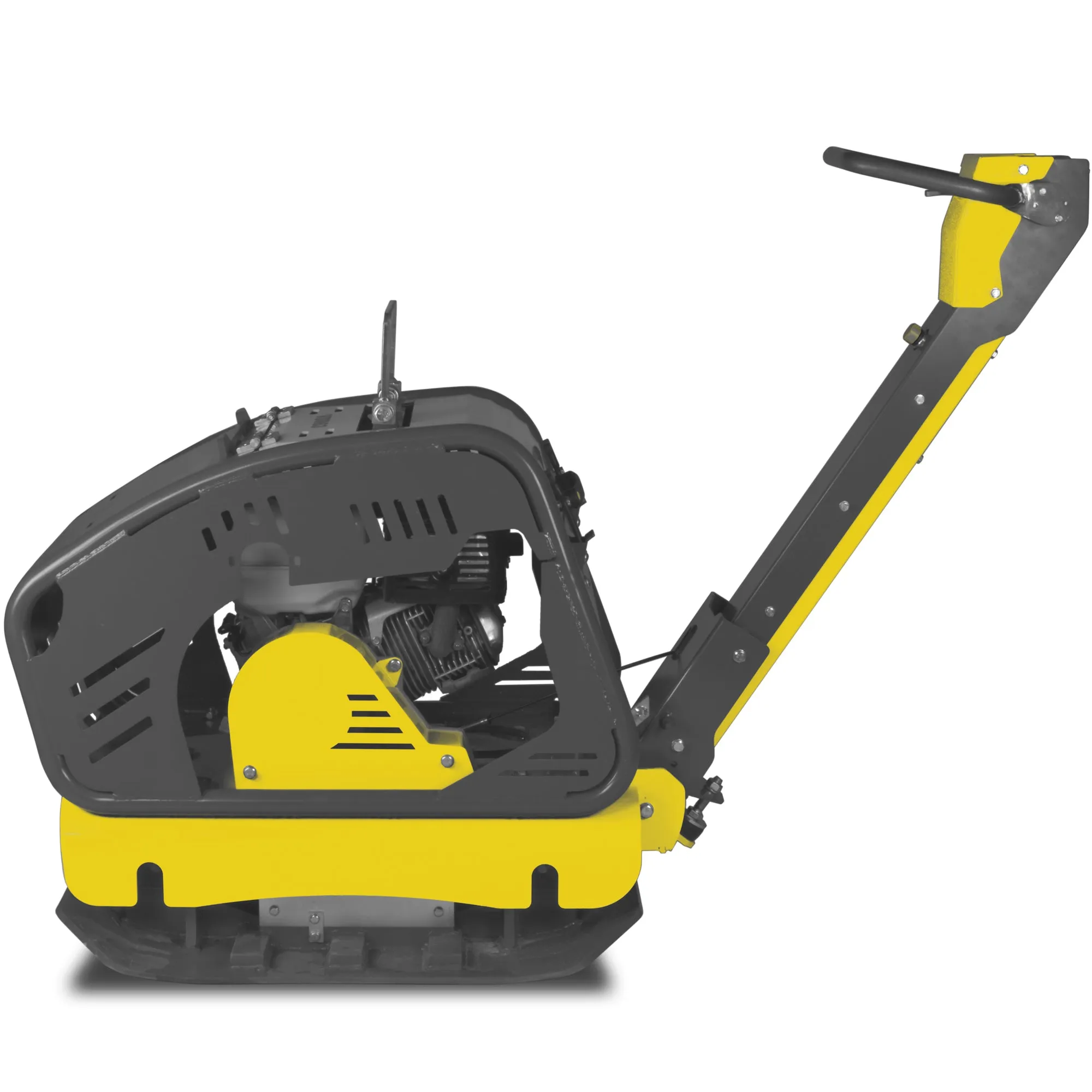

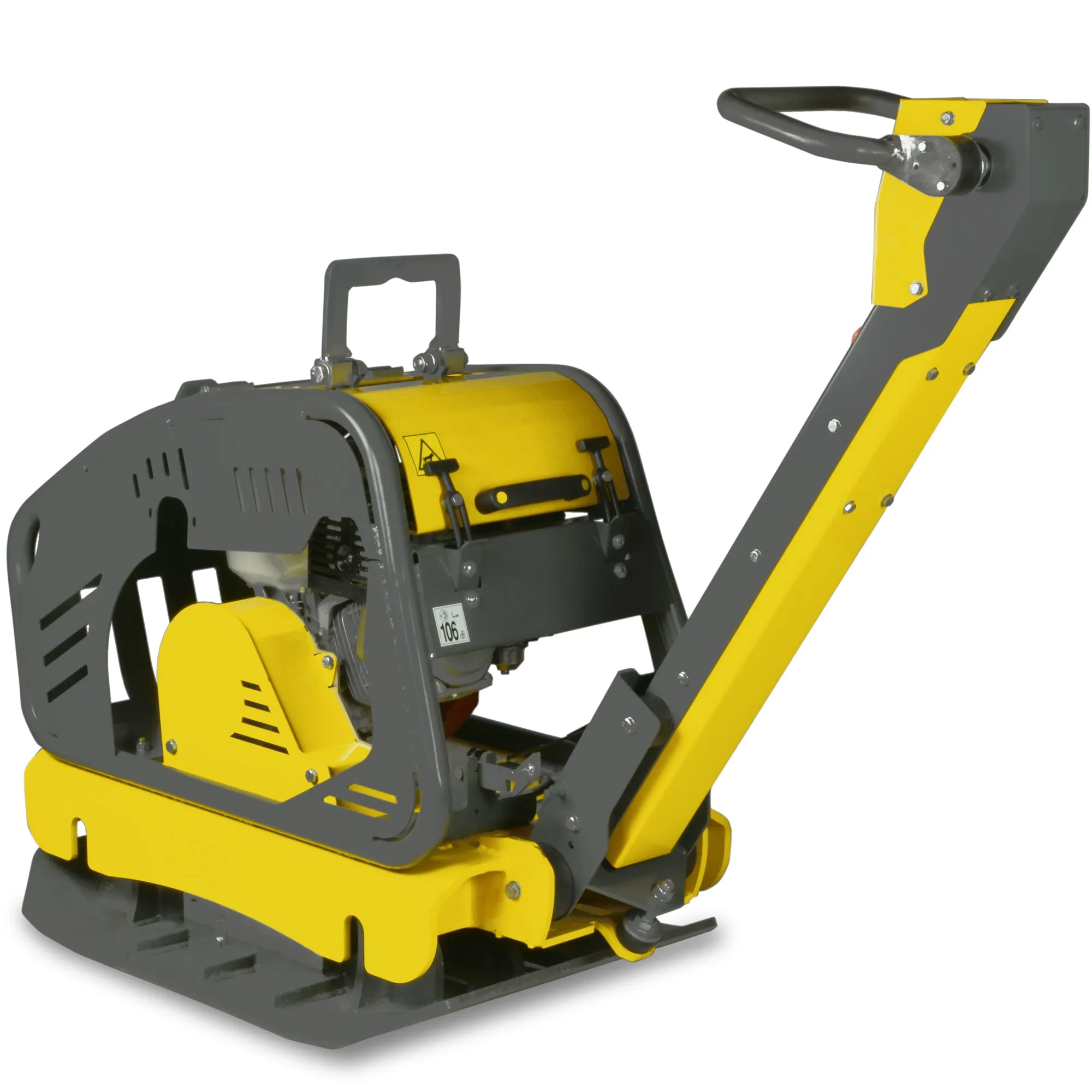

With an incredible compaction force of 11,240 lb/f., the TPC430H Heavy Duty Reverse  Vibratory Plate Compactor effectively prepares surfaces for road repair, pavement, pipeline applications, and laying bricks like no other vibratory plate on the market. Equipped with a 59 in. x 27.5 in. plate, compact cohesive and granular soils at a maximum travel speed of 85 ft. per minute, while working within narrow trenches and corners. The TPC430H Reverse Plate Compactor, powered by the incredible 11.7 HP Honda GX390 Engine, is ideal for compacting landscapes, hardscapes, roadways, and asphalt. CARB and EPA certified, the engine offers lower exhaust emissions, reduced fuel consumption, and quieter operation. Best suited for professionals and rental companies alike, the TPC430H transitions effortlessly between forward and reverse travel on loose soils, gravels, and sand for a sturdier, level foundation, to ensure longer lasting projects. The TPC430H is backed by a 3-year engine warranty, on top of a 1-year product warranty.

Features

• 11.7 HP Honda GX390 Engine
• Achieve 100% compaction ratings on field density tests and nuclear densometers
• Compaction force of 11,240 lb/ft
• User friendly hydraulic drive system
• Travel speed of 85 ft/min in forward and reverse
• 59" x 27.5" plate works around narrow trenches and corners
• Heavy duty engine enclosure for the harshest conditions
• Lifting hook for greater mobility around construction sites
• 3 year engine warranty

Specifications

• Engine: Honda GX390
• Horsepower: 11.7 HP
• Fuel Type: Petrol
• Centrifugal Force: 63 Kn
• Max Travel Speed: 85 ft/min
• Plate Dimensions: 59 x 27.5 inches
• Weight: 948 lbs.
• Product Warranty: 1-year
• Engine Warranty: 3-year
• CARB Compliant: Yes
• EPA Compliant: Yes

Package Includes

Applications

• Pipeline Applications
• Retaining Walls
• Footings and Foundation Projects
• Landscapes and hardscapes
• Patchwork on Asphalt
• Road Repair and Trenchwork
• Backfill Pools, Parks, Cemeteries, and Golf Courses
• Cohesive Soils and Granular Soils
• Sticky soils - such as clay or clayey silt
• Gravel, sand, silt, clay, or mixed soils
• Base, Subbase, Subgrade, Subsoil

What Compactor Do I Need?

A compactor is an essential tool for preparing a solid base for structures such as patios, retaining walls, concrete slabs, and more. Tamping rammers and compactors are used to increase the density of soil by reducing air voids, which help to improve soil stability, support structures, and prevent settling. With so many options on the market, choosing the right plate compactor can be a daunting task.

Small Jobs

If you are installing artificial turf, building dirt pathways, or need to improve soil stability - but do not need to adhere to a minimum compaction rating you can use a compactor in the 110 lbs (50 kilo) range. These are great for anyone looking to get a job done by themselves with little headache.

Medium Jobs

If your project involves building a retaining wall, patio, driveway, sidewalk, or concrete slab you will need a bit more muscle. Rammers and compactors in the 130-200 lbs (60-90 kilo) range that can achieve a compaction force above 3,000 lbs²/ft are best. You will achieve 98-100% compaction ratings needed for proper compaction to prevent soil settling and foundation damage.

Large Jobs

Equipment needed for large compaction projects should also be able to achieve a minimum compaction force of 3,000 lbs²/ft to reach 98-100% compaction ratings needed for proper compaction. Where this equipment differs from medium range equipment is it's efficiency. Large jobs are typically performed by professional contractors where speed and jobsite efficiency are critical to their success. Compactors that help jobsite efficiency may feature reverse control, hydraulic drive, and the ability to compact asphalt. If you are not too worried about the time it takes to complete a project, you can save a few bucks and invest in equipment in the medium range.
