Description:

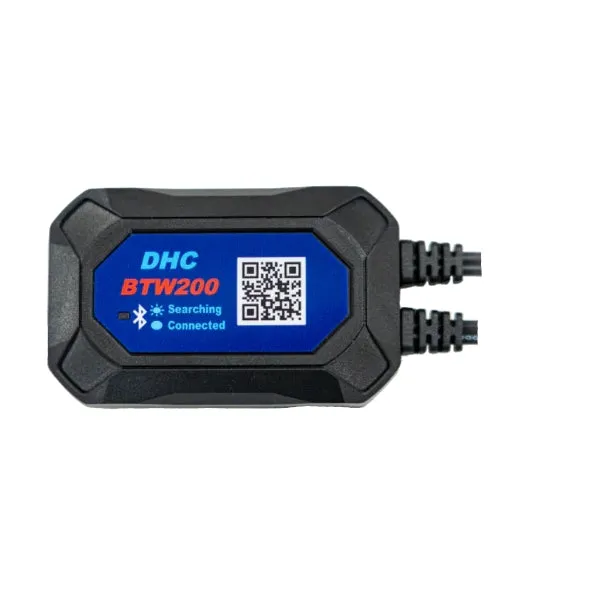

The BTW200 is a cutting-edge wireless battery system analyzer, offering real-time battery monitoring, start-stop battery testing, and cranking/charging system analysis for both 12V and 24V systems. With a user-friendly graphical interface, the BTW200 is controlled remotely through iOS or Android applications, making battery testing easier and more efficient. Its advanced features include cloud data management, the ability to store vehicle, customer, and shop information, and share test results instantly. Designed for modern automotive batteries, including AGM, EFB, and VRLA, the BTW200 delivers precision and convenience in one compact device.

In-Depth Product Breakdown:

Key Features:

• Battery Monitor: Real-time monitoring and automatic notifications keep you updated on battery health.
• Battery, Cranking, and Charging System Tester: Supports 12V and 24V systems, including start-stop batteries for comprehensive testing.
• Start-Stop Battery Test: Ensures precise testing for modern start-stop battery systems.
• Graphical User Interface: Intuitive and interactive interface for clear test results and easy operation.
• Vehicle & Battery Information: Supports scanning VIN & battery serial numbers for enhanced record-keeping.
• Customer & Shop Info: Edit and save customer and shop details for professional management.
• Calendar: Track testing history with a built-in calendar to view when and which tests were performed.
• Remote Control via Applications: Remotely control the tester through iOS or Android apps for added convenience.
• Share Test Results: Easily share test results through apps or email, enhancing communication.
• Cloud Data Management: Access and manage test data through DHC cloud services for better organization.
• Field Upgrade: Easily upgrade your BTW200 software via DHC applications for continuous improvement.
• Name the Tester: Assign unique names to testers for easy identification in multi-device environments.
• Group Test Capability: Perform batch testing of multiple batteries efficiently with group test functionality.

Technical Information:

• Model Number: BTW200
• Application: 12V battery / 12V Start-Stop battery test, 12V & 24V cranking/charging system test
• Supported APP: iOS & Android (Android 5.0 and above / iOS 10 and above)
• Wireless Connection: Bluetooth 4.2 (BLE), RF Frequency: 2.4GHz
• Cloud Services: Supported (mybatteryexpert.com powered by AWS)
• Supported Battery Types: Flooded, VRLA/GEL, AGM Flat, AGM Spiral, EFB
• Battery Ratings: CCA/SAE, EN, JIS, DIN, IEC, CA/MCA
• Operating Range: 40~2,000 CCA (SAE)
• Voltage Range: 5V ~ 31.5V
• Dimensions (mm): 70 (L) x 45 (W) x 15 (H)
• Languages: English, French, Spanish, German, Italian, Portuguese
