| Product Attribute | Attribute Value |
|---|---|
| Body Style | Bulb & Capillary |
| Contact Form | SPST |
| Current Rating | 20 A |
| Dielectric Rating | 1500 VAC per 1 Minute |
| Insulation Resistance | 100 Megohms or More |
| Maximum Operating Temperature | 40 °C |
| Minimum Operating Temperature | –35 °C |
| Output | SPDT |
| Output Type | Relay |
| Product Header | Cold Capillary Control |
| Series | |
| Standards | UL, cUL, CSA, VDE |
| Supply Voltage | 125/250 VAC |
| Thermostat Type | General-Purpose |
| Type | Thermostat |
| Voltage Rating | 125⁄250 VAC |
Overview

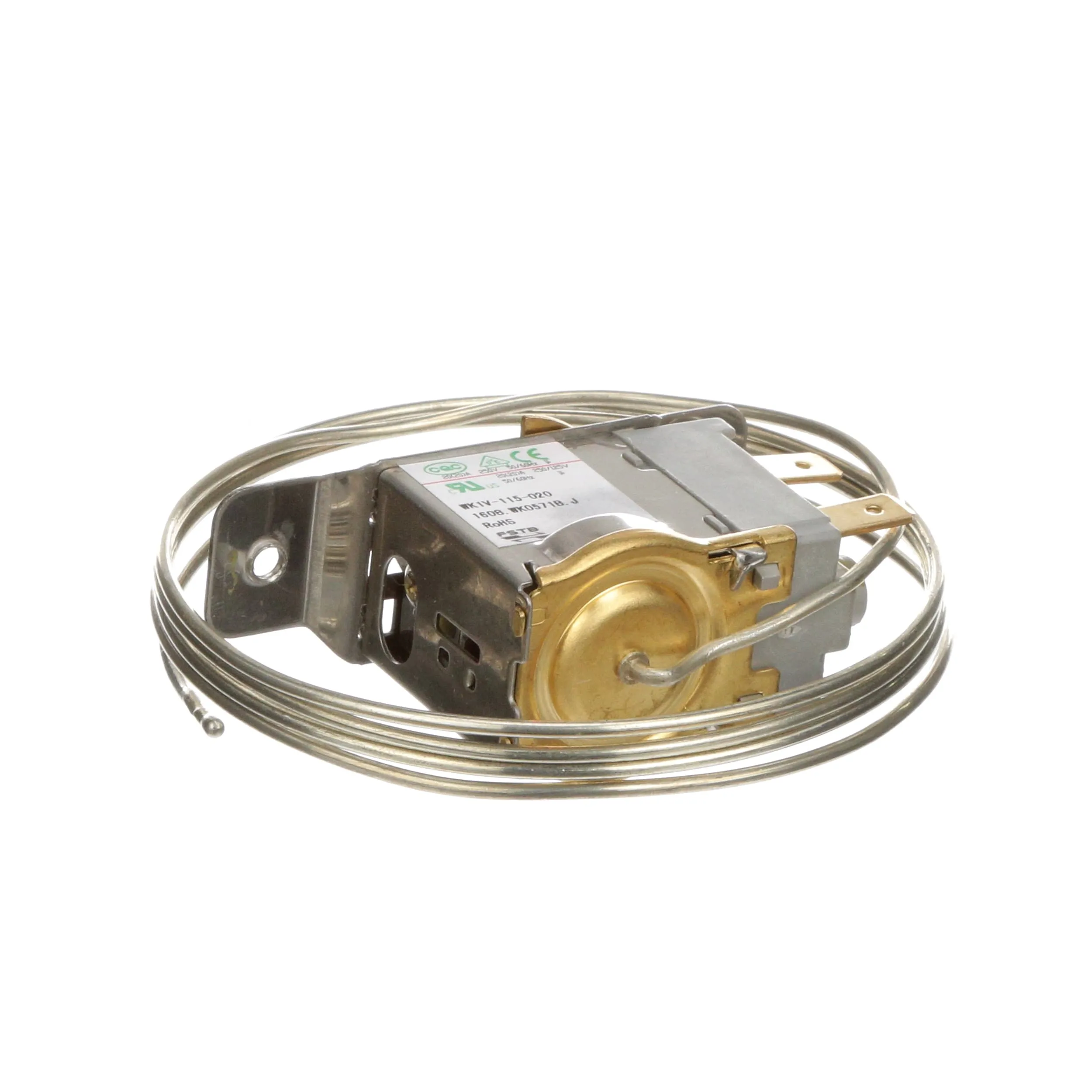

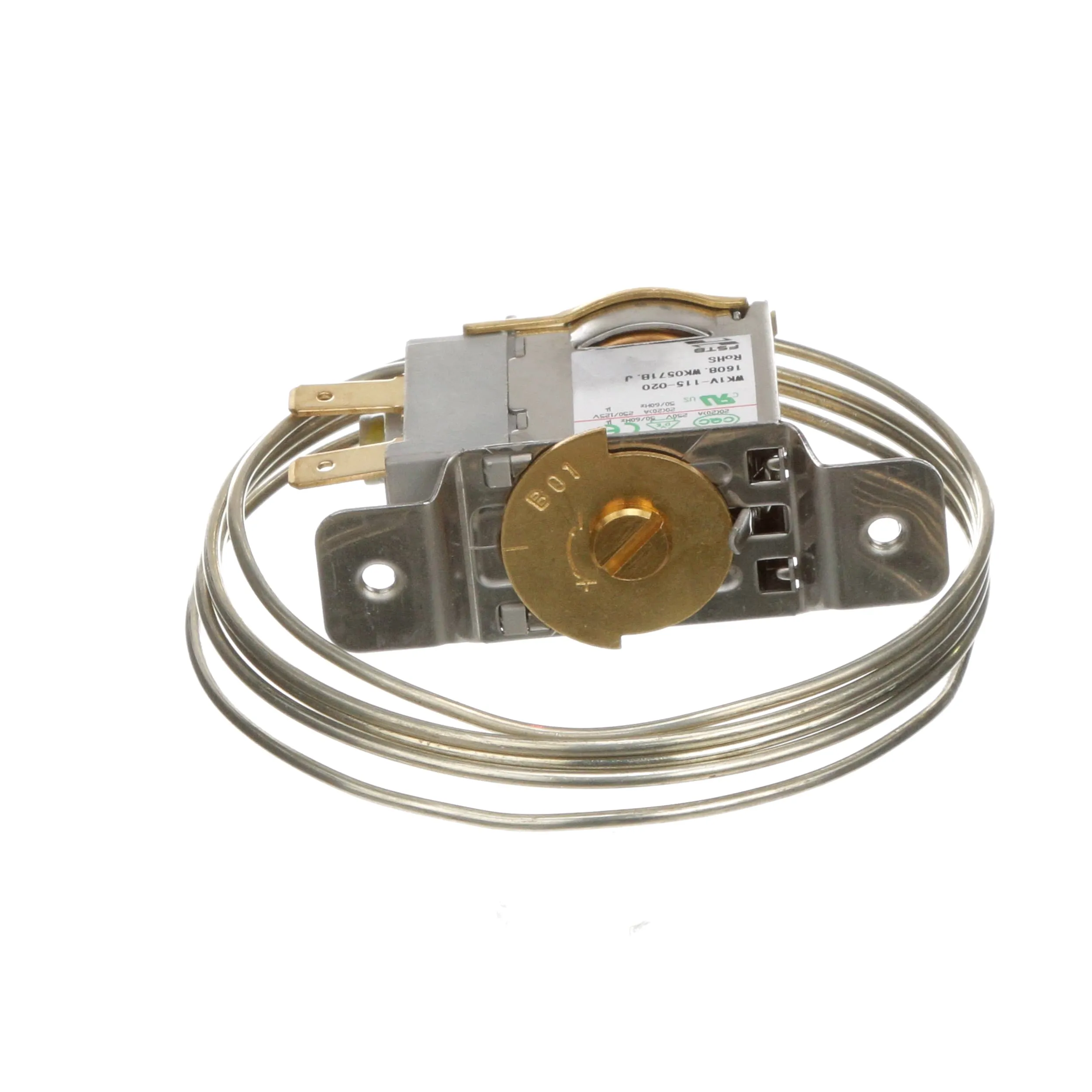

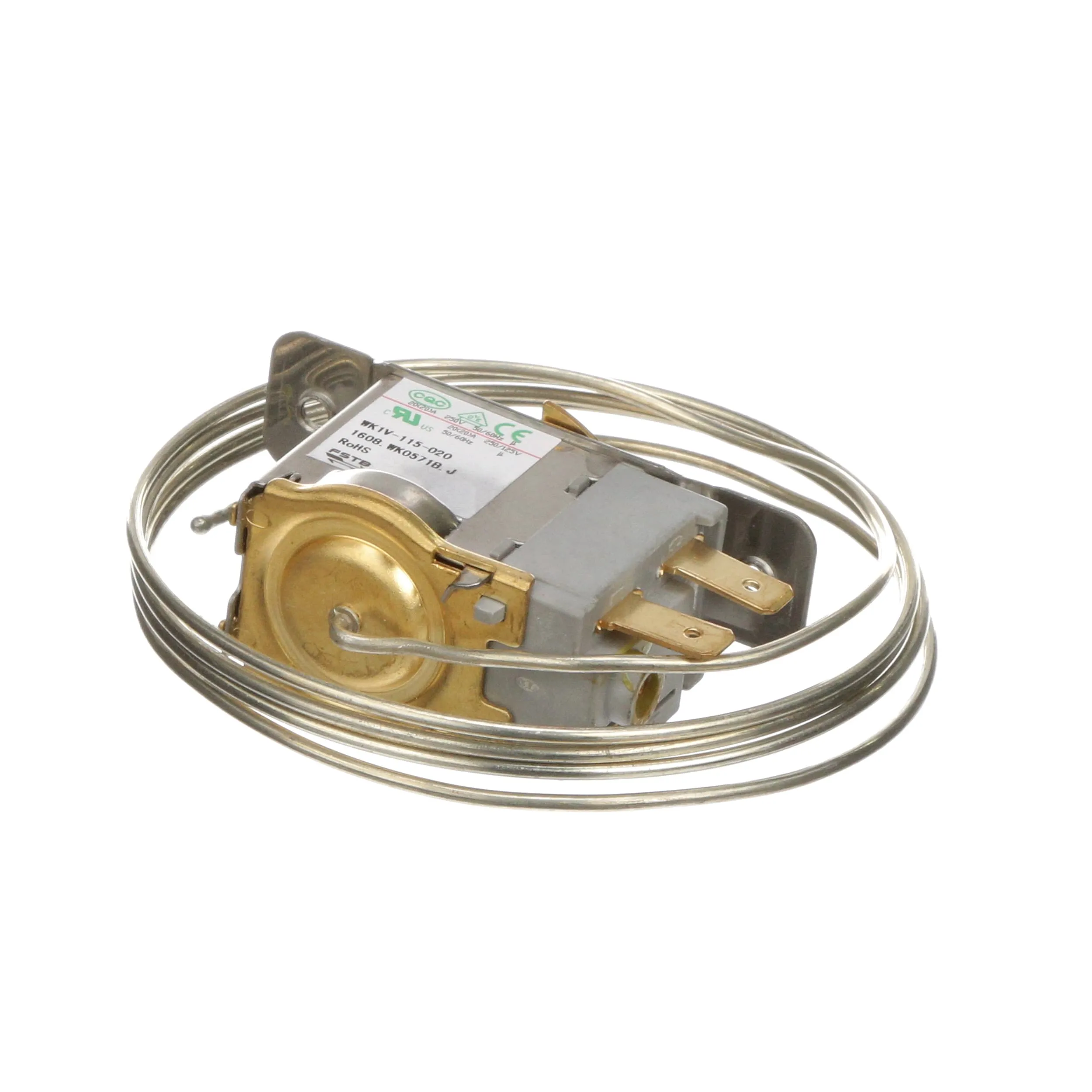

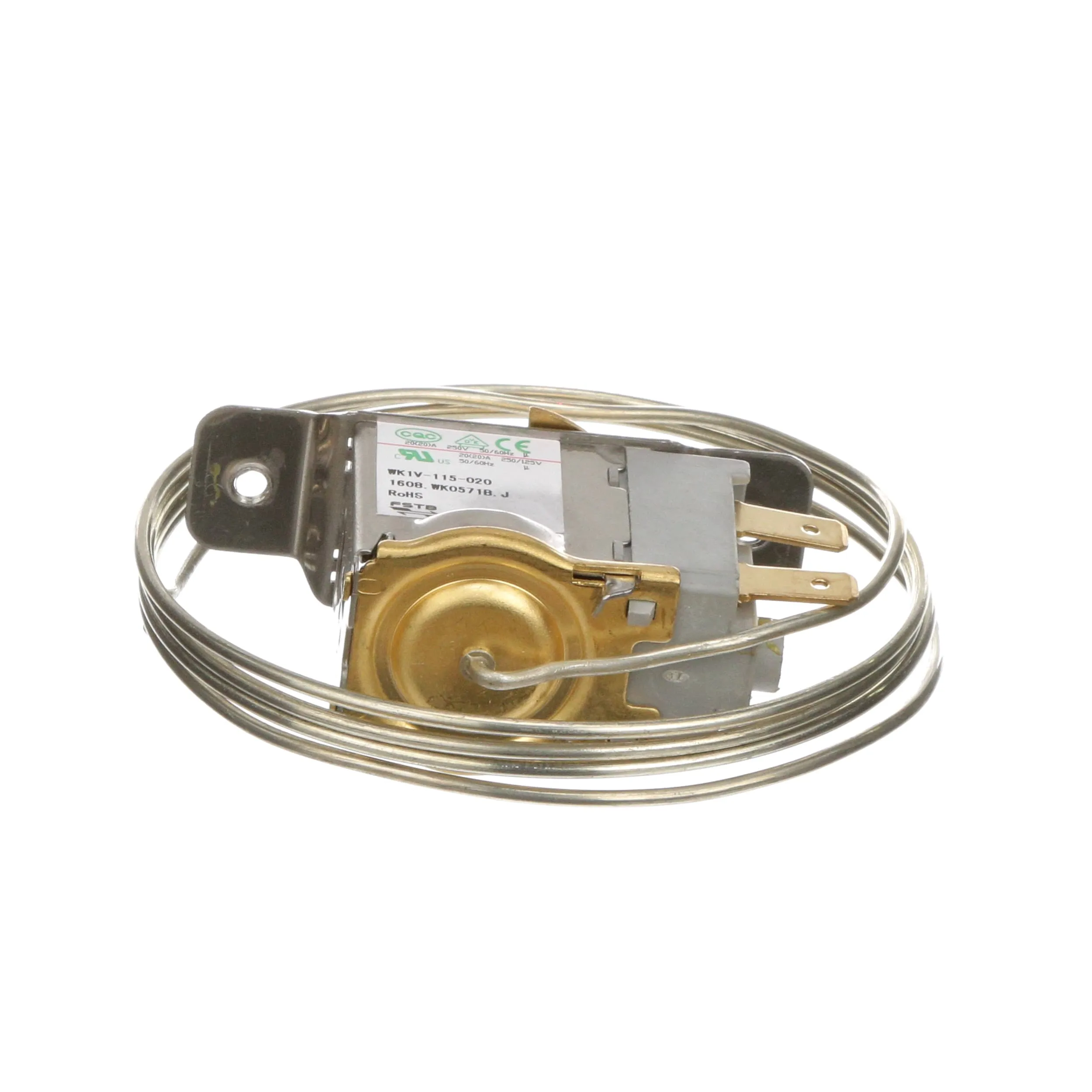

General-Purpose Thermostats — WK and WK-H Series The WK Series thermostat is designed to provide the ideal temperature control solution for a wide variety of refrigeration and air-conditioner applications. This cold control provides accurate temperature control and high sensitivity for a wide range of refrigerators, freezers, beverage cooler and display case applications. With universal adaptability in mind, the WK Series is designed to replace many OEM controls, offering the user additional options and convenience during equipment manufacturing or repair. Mainly built to custom specifications, it comes complete with a variety of mounting hardware including brackets, terminals, dial plates and knobs. Specifications: Electrical Ratings: 125/250 VAC, 20 Amps, resistive, 125/250 VAC, 20 FLA, 100 LRA. Dielectric Strength: AC 50/60 Hz, 1,500 V/1 minute. Temperature Range: –31°F to 104°F (–35°C to 40°C) Differential: 4°F to 9°F (2°C to 5°C) Life Cycles: 100,000 cycles.
